FSMJ
SALIENT FEATURES OF FSMJ CHAMBAL WATER METERS
- Multi Jet
- Hermetically Sealed
- High Sensitivity, Low Pressure Loss
- Dry dial, Magnetic Drive
- Inferential Type
- Vacuum sealed register with IP-68 Protection
- Measuring Accuracy Conforming to Class "B" of ISO 4064/1 & IS-799-1994 with ISI Mark
- Selected High Quality Material for Durability
- Interchangeable Spare parts for easy maintenance

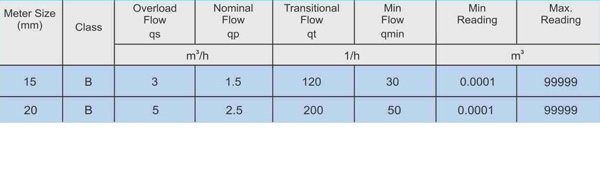

MAIN TECHNICAL DATA
INDICATING ERROR
- ±2% from Qmax(inclusive) to Qt(inclusive)
- ±5% from Qt(exclusive) to Qmin(inclusive)
FLOW ERROR
PRESSURE LOSS NOT TO EXCEED
- 0.1 MPa at Qmax
- 0.025 MPa at Qn

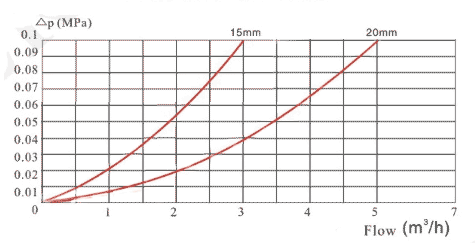

HEAD LOSS CURVE
![](./assets/img/curve_fsmj.png)
WORKING CONDITIONS
Water Temperature:
- 50°C for Cold Water Meter &
- 90°C for Hot Water Meter
Working Pressure: 1.6MPa
Maximum Test Pressure: 2.0MPa
RAY DIAGRAM
![](./assets/img/nbsjm_ray.jpg)

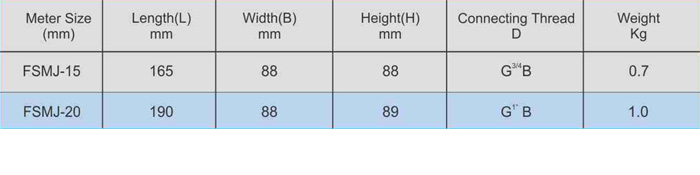

DIMENSIONS
![](./assets/img/fsmj_dimensions.jpg)

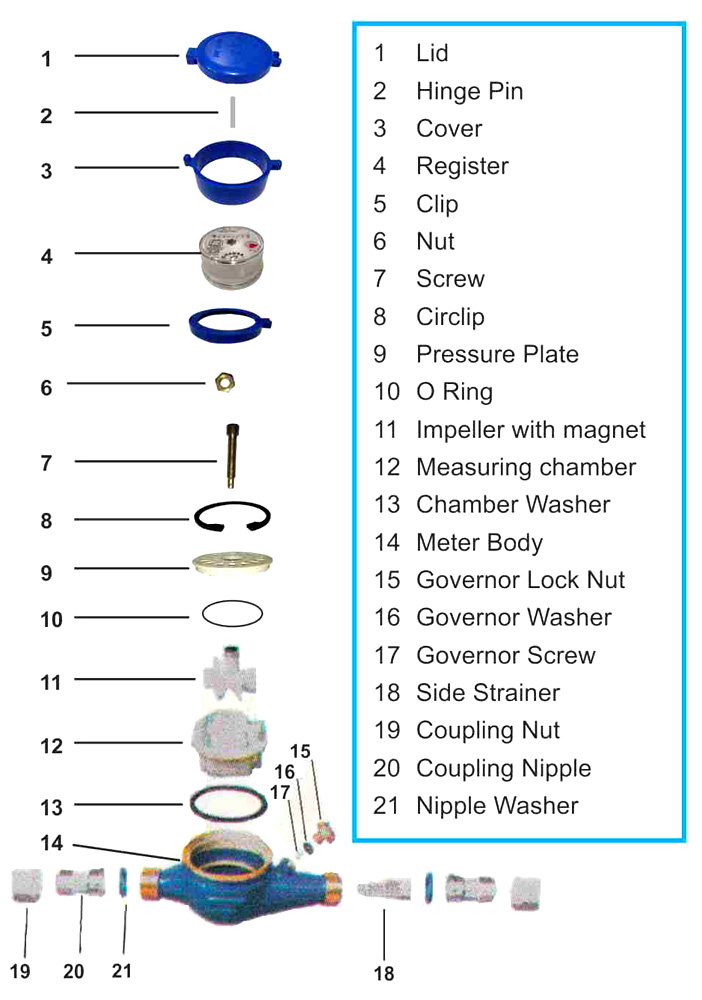

BLASTED ASSEMBLY
![](./assets/img/fsmj_blast.jpg)
